SST Statistics-Based Intelligent RocksDB Compaction Optimization for Apache Ozone

·6 mins· ·
Ozone Rocksdb Compaction
Author
李緒成 | Peter Lee
OSS Contributor | Distributed System | Storage
Table of Contents

Pull Request of this Design

Author: Chu-Cheng Li Supervising Professor: Kun-Ta Chung

Introduction
#

Apache Ozone is a next-generation distributed file system designed to overcome the small file limitations of traditional HDFS by using RocksDB for efficient metadata storage. This project introduces an SST-based intelligent compaction optimization to address RocksDB performance issues in Ozone, particularly under heavy delete workloads (tombstones).

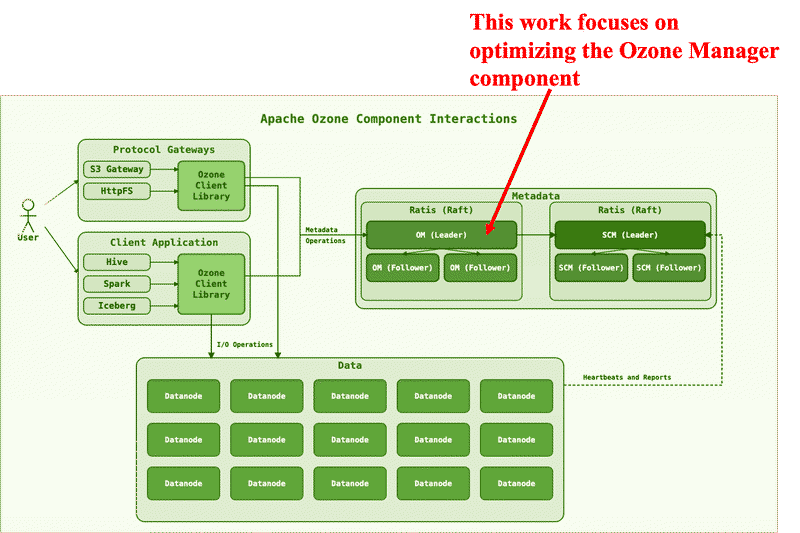

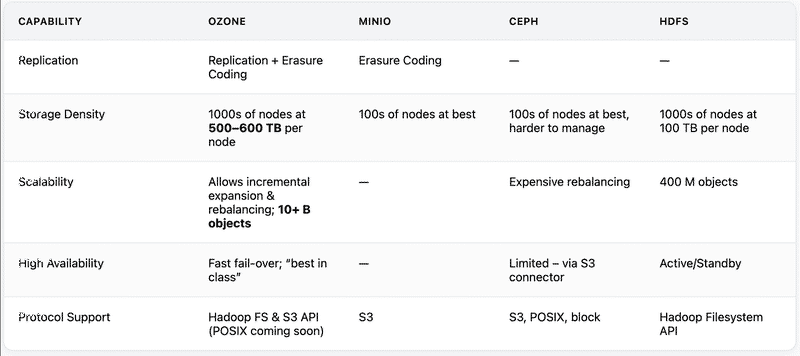

ozone:

ozone

ozone-table

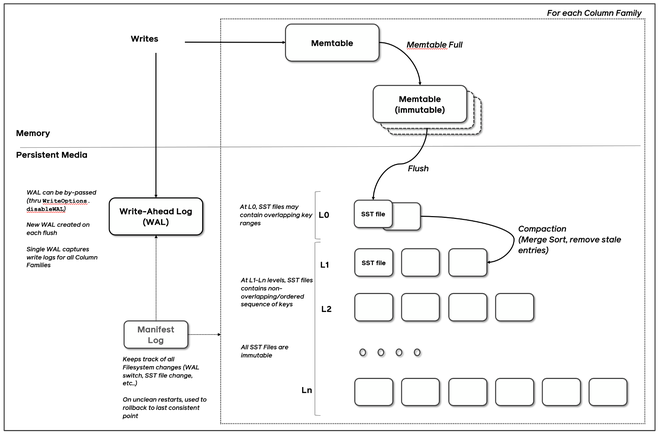

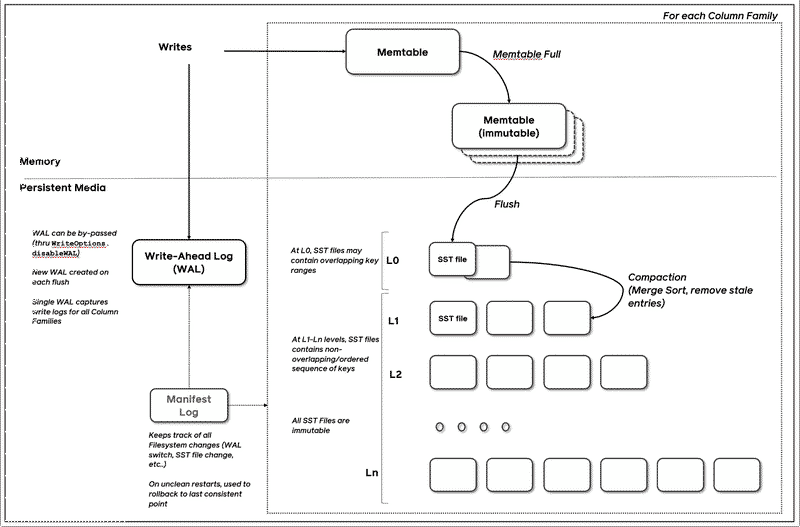

rocksdb:

rocksdb

Key Challenge
#

  • RocksDB suffers from slow iteration performance when many consecutive tombstones accumulate.

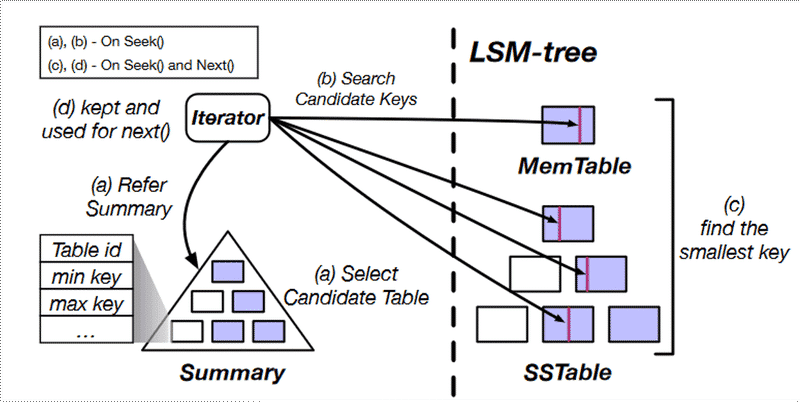

RocksDB Seek
#

rocksdb-seek

  1. Candidate Table Selection: The iterator consults the Summary (table min/max key) to quickly narrow down which tables might contain the target key.
  2. Key Search Across Levels: Both MemTable (latest writes) and all levels of SSTables are scanned to find the smallest key ≥ target.
  3. Candidate Key Extraction: The iterator fetches candidate keys from multiple sources in parallel.
  4. Heap Merge: Results from each table are merged using a min-heap to return the next smallest key on every Next().

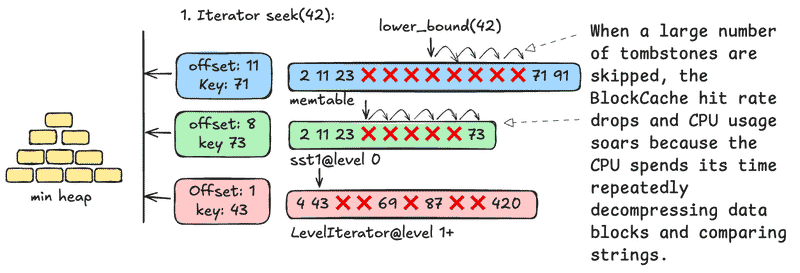

RocksDB Seek with Many Tombstone
#

When a large number of tombstones are skipped, the BlockCache hit rate drops and CPU usage soars because the CPU spends its time repeatedly decompressing data blocks and comparing strings.

seek with many tombstone

Proposed Optimization:
#

Scan Key Ranges with High Tombstone Density, then Compact Them
#

Approach:

  • Split the entire table into multiple small ranges using bucket name prefixes.

    • Initially, each bucket forms a single range.
    • If a range becomes too large, subdivide it using SST table boundaries to create smaller, more manageable ranges.

  • Three main benefits:

    1. Only compact SSTs with high tombstone ratios, reducing unnecessary resource usage.
    2. Compacting small SST ranges significantly lowers the impact on overall system performance.
    3. Enables customized, optimized splitting logic tailored to each table’s characteristics and access patterns.

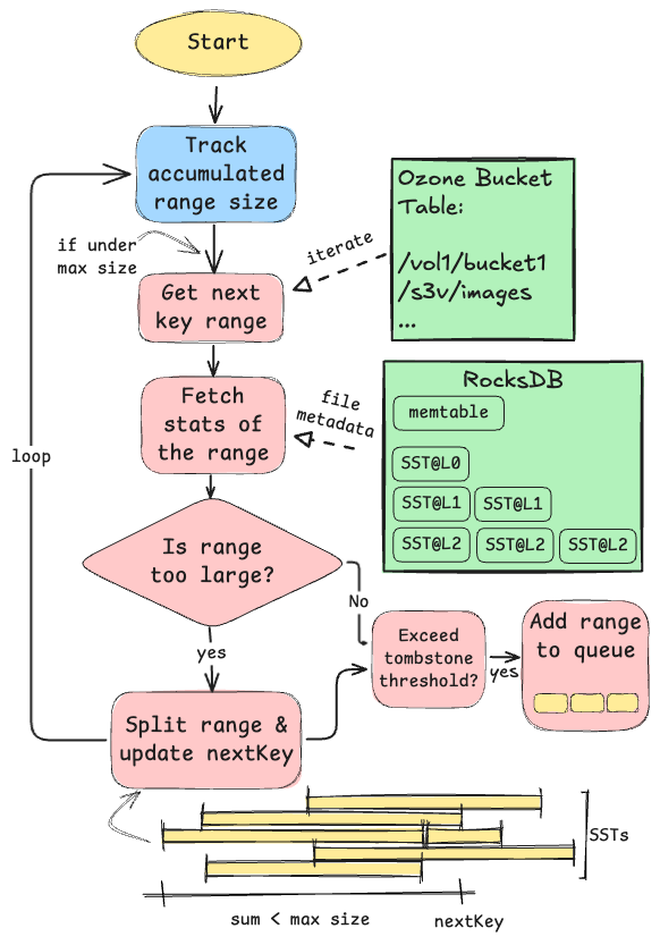

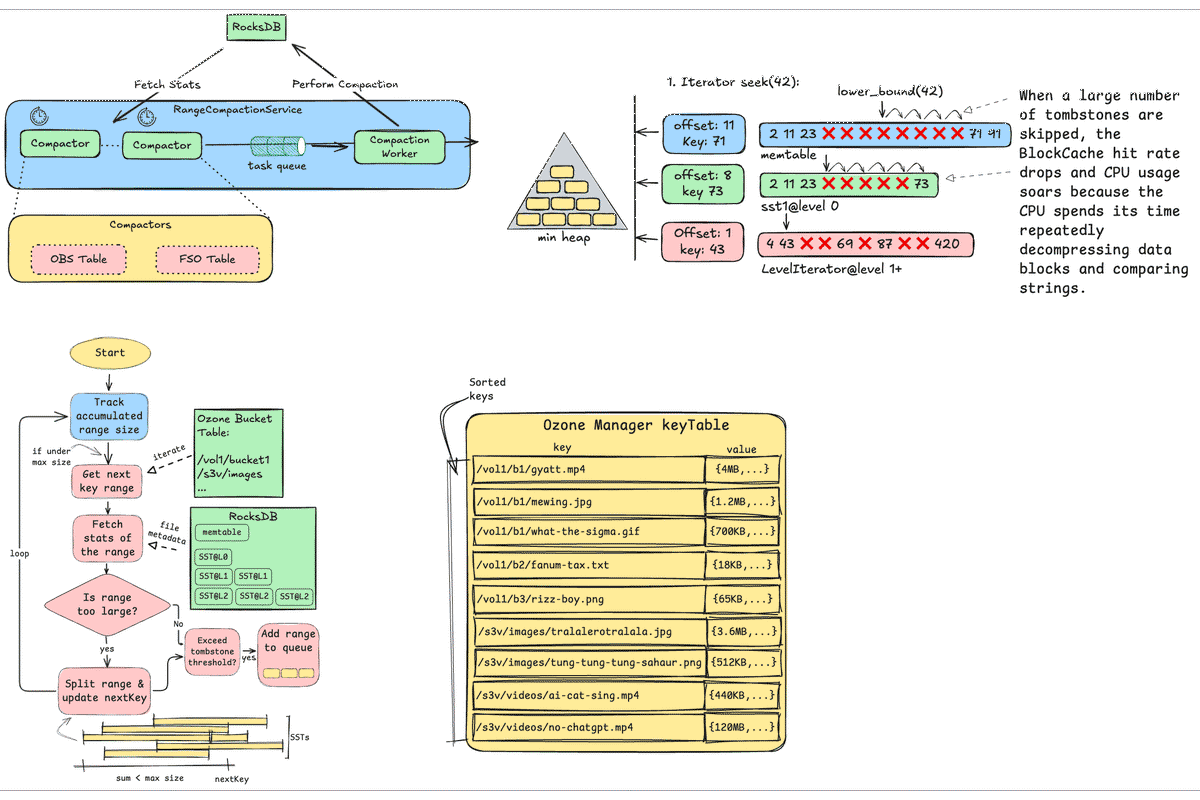

Compaction Workflow
#

Compaction Workflow

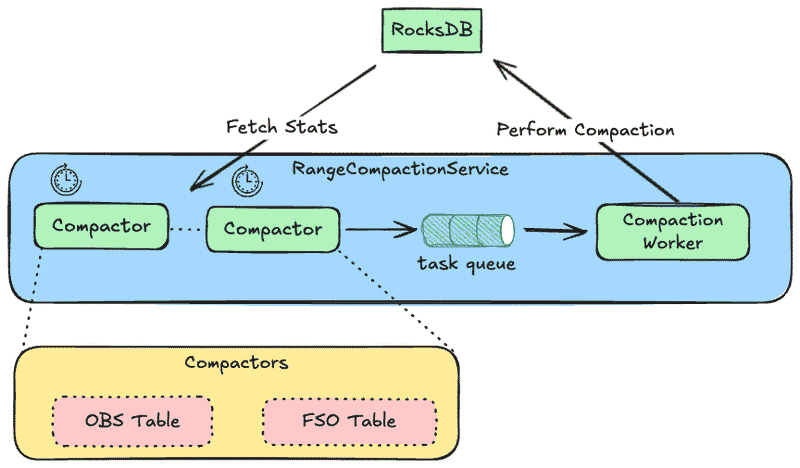

Architecture Diagram
#

Architecture Diagram

Experimental Results
#

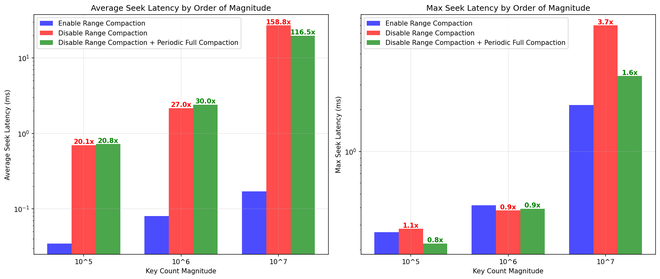

  • Enabling range compaction in Apache Ozone yields:

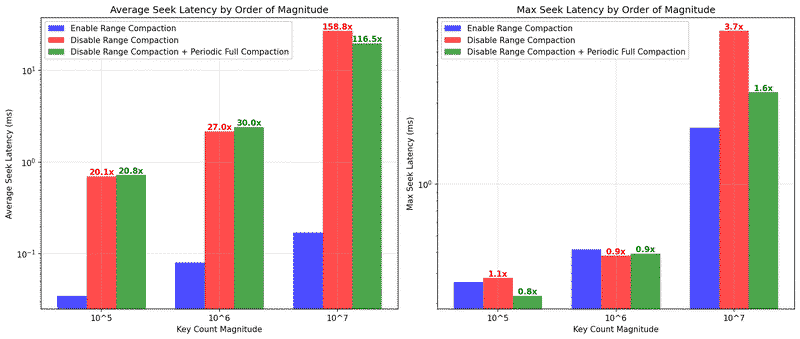

    • Read latency improvement:

      • For a dataset with 10⁷ keys:

        • Average seek latency reduced by over 158x (from 35.5ms to 0.22ms)
        • Maximum seek latency drops by 3.7x (from 8.3ms to 2.2ms)

      • Performance benefits scale with dataset size:

        • 10⁵ keys: 20x improvement in average latency
        • 10⁶ keys: 27x improvement in average latency
        • 10⁷ keys: 158x improvement in average latency

    • Write throughput:

      • Remains unaffected; normal data ingestion rates are maintained.

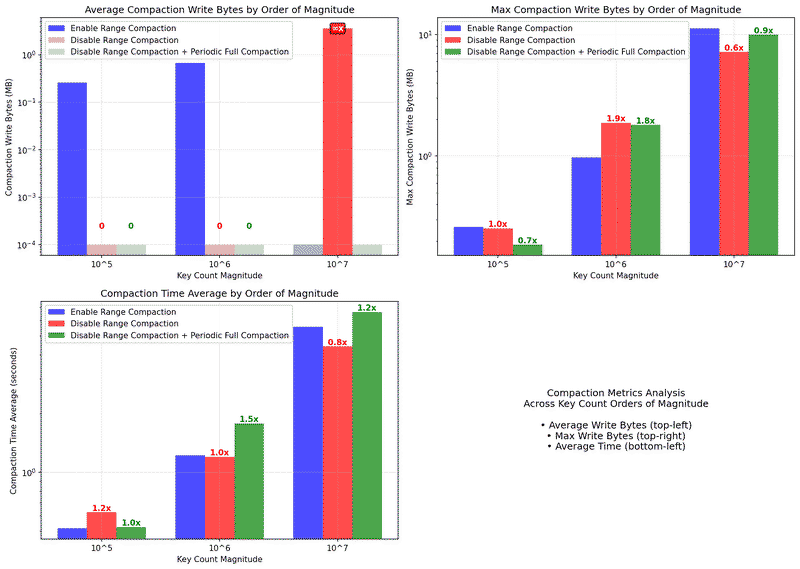

    • Compaction resource usage:

      • Average compaction time: Generally decreases or remains similar (5.5s vs 4.4s at 10⁷ keys)
      • Average compaction write bytes: Significantly reduced - often near zero for large datasets
      • Max compaction write bytes: Interestingly shows 11.2MB vs 7.2MB at 10⁷ keys
        • Note: The higher max write bytes for range compaction may indicate concurrent compaction operations or insufficient separation between scan and compaction scheduling, requiring further investigation

  • Conclusion: Range compaction provides dramatically improved and scalable read performance with minimal impact on write efficiency. The compaction overhead is actually reduced on average, though peak compaction write activity may be higher due to implementation details that warrant further optimization.

Benchmark Workload
#

  • Total operations: 8 × 10⁷

    • Create: 68.97%
    • Delete: 27.59%
    • List: 3.45%

Visualizations
#

Bytes Metrics
#

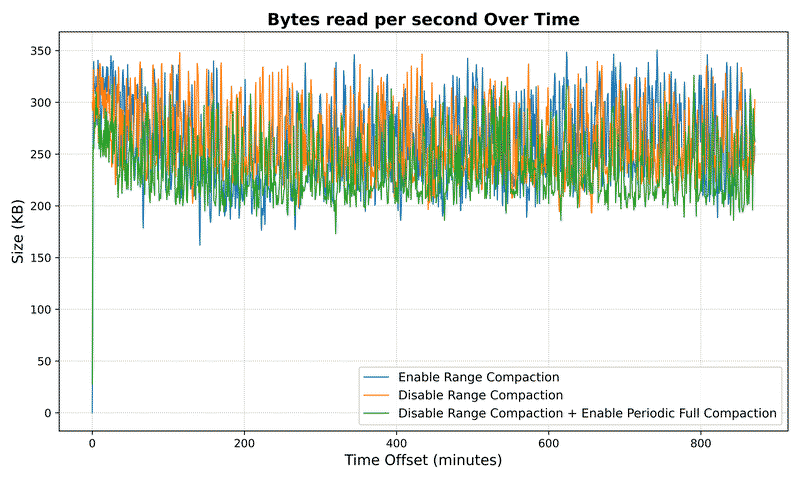

  • Bytes read per second

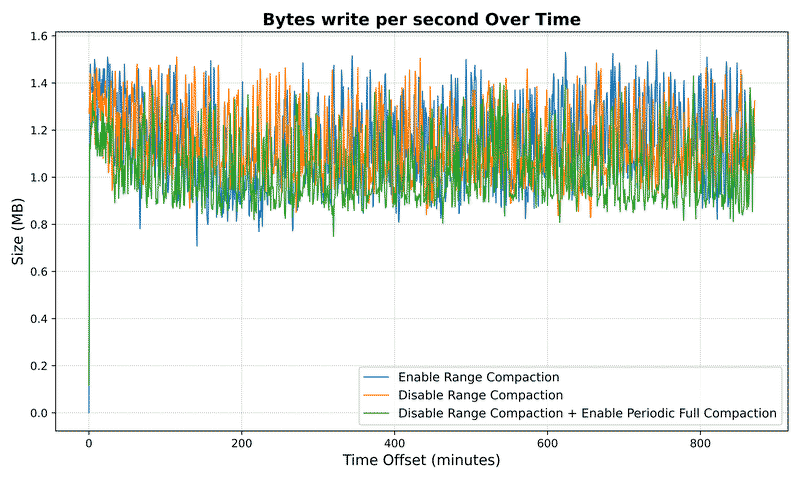

  • Bytes write per second

Compaction Metrics
#

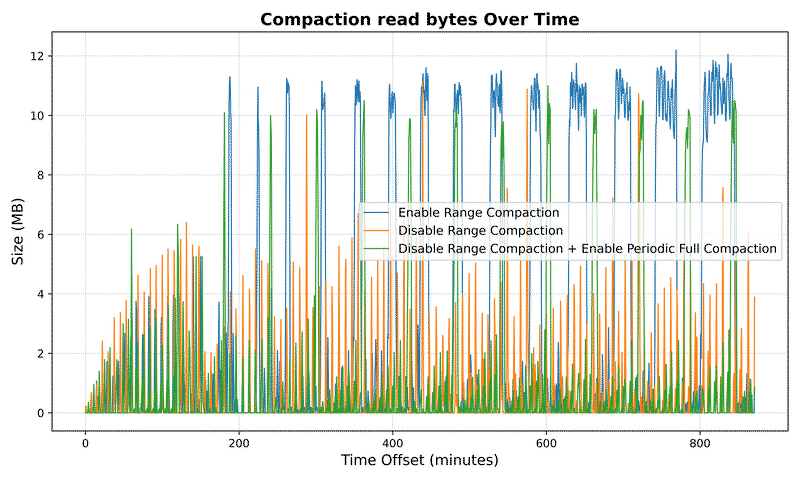

  • Compaction read bytes

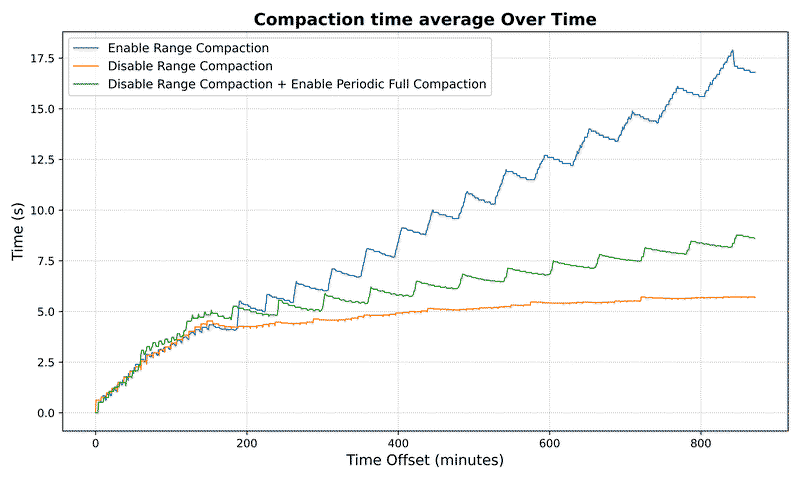

  • Compaction time average

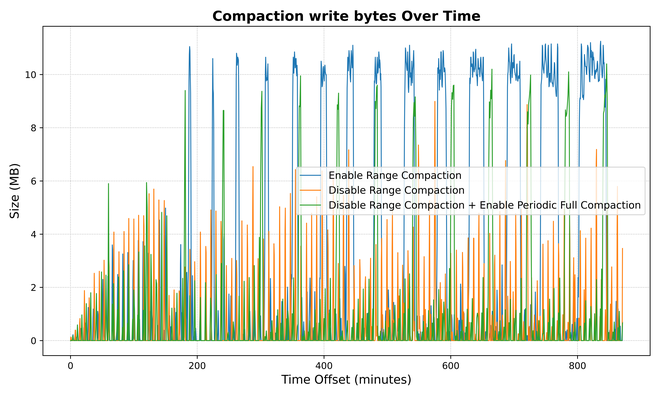

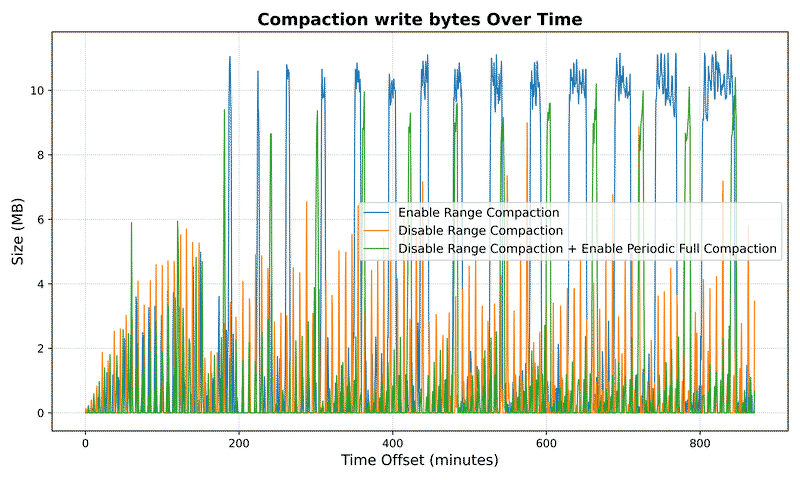

  • Compaction write bytes

DB Metrics
#

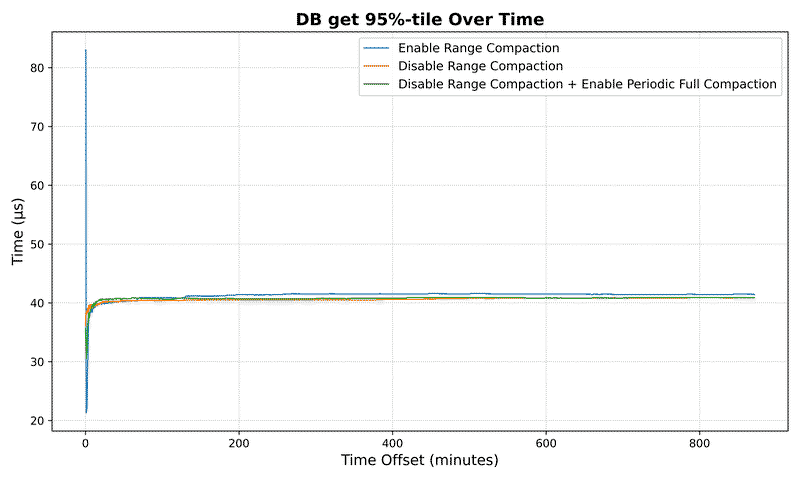

  • DB get 95%-tile

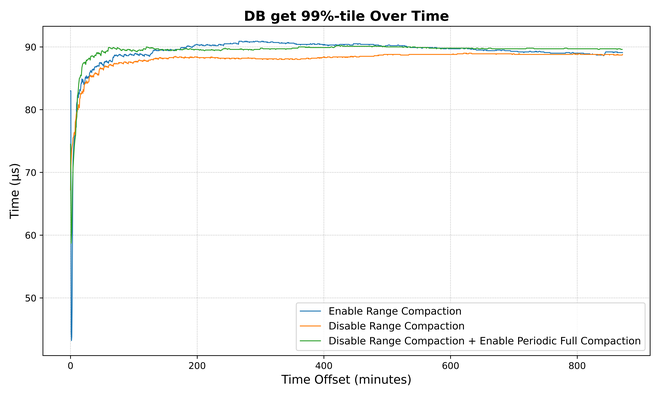

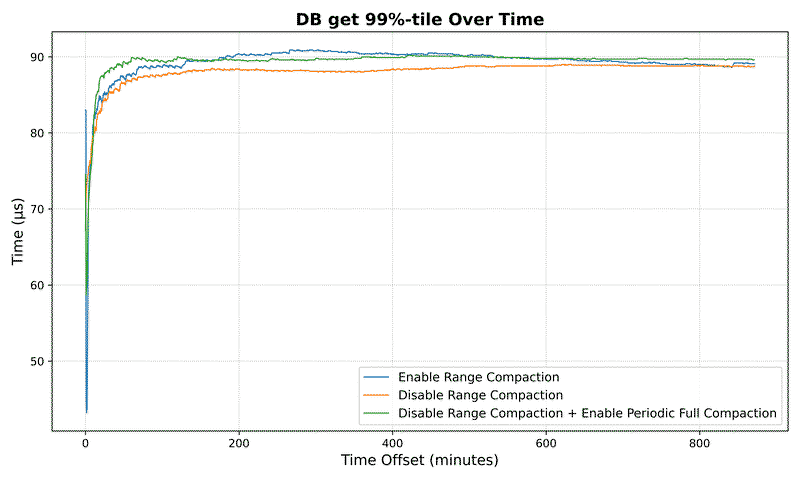

  • DB get 99%-tile

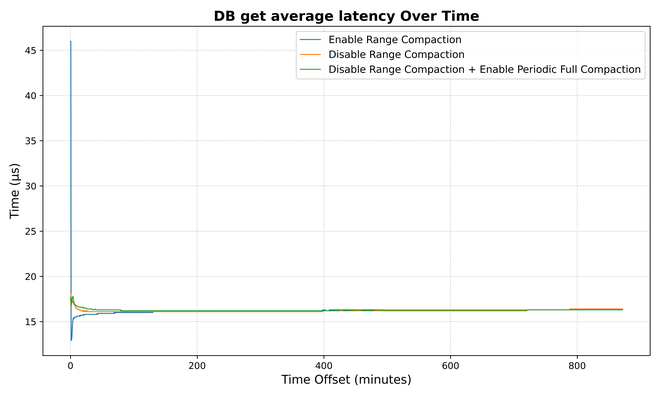

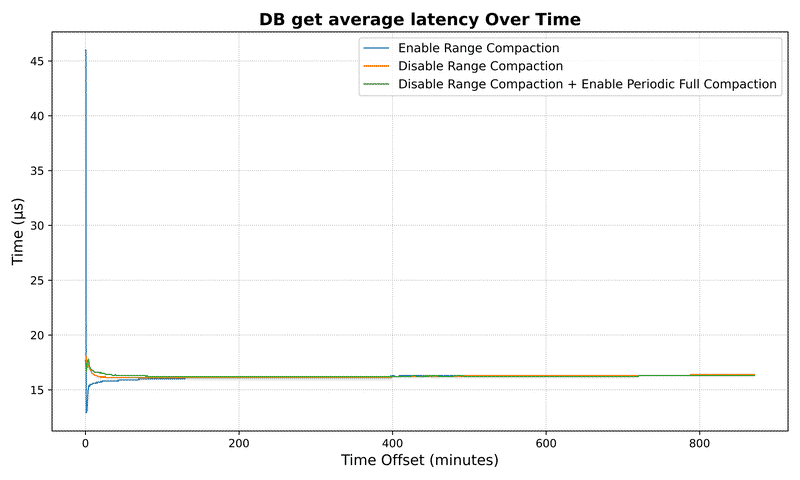

  • DB get average latency

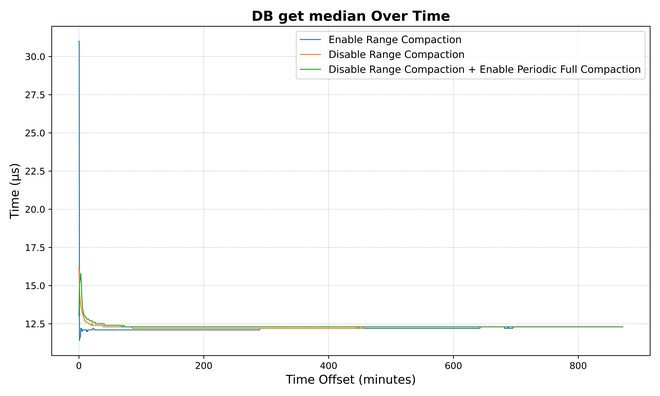

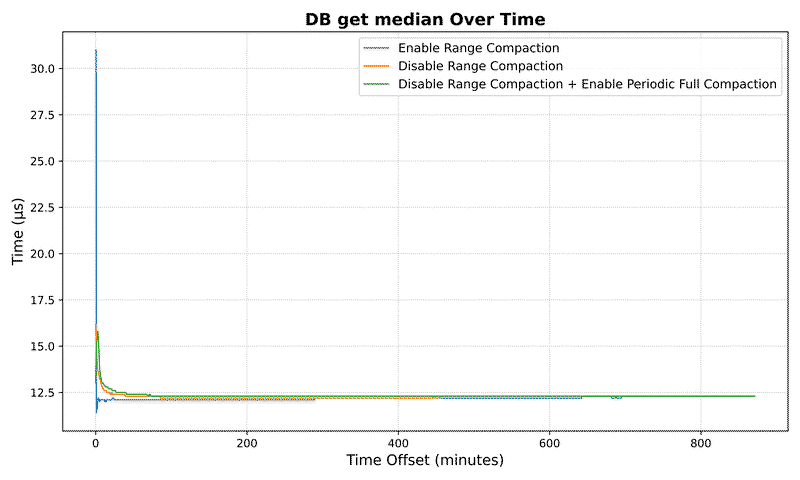

  • DB get median

DeletedTable Metrics
#

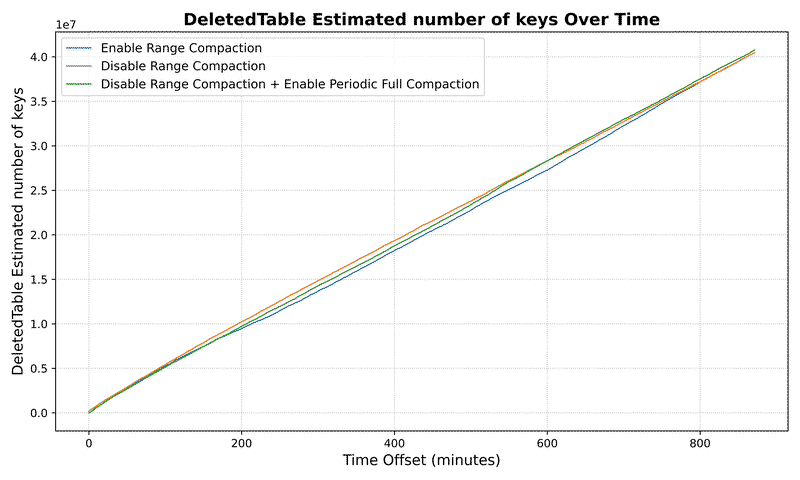

  • DeletedTable Estimated number of keys

Flush Metrics
#

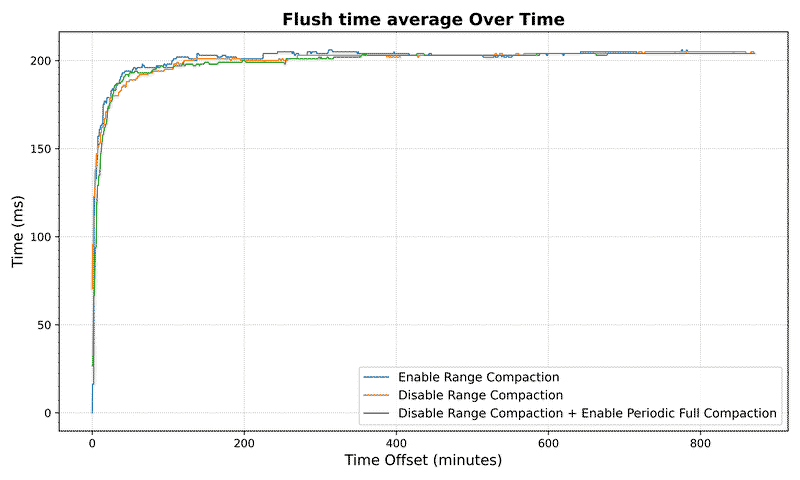

  • Flush time average

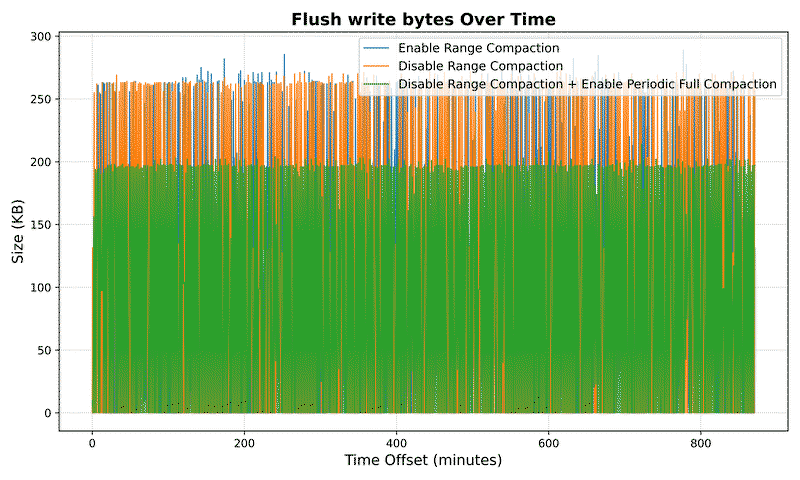

  • Flush write bytes

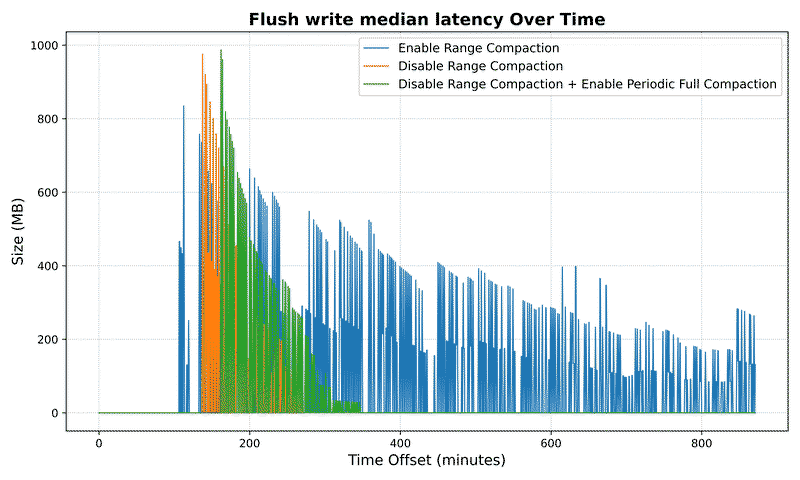

  • Flush write median latency

KeyTable Metrics
#

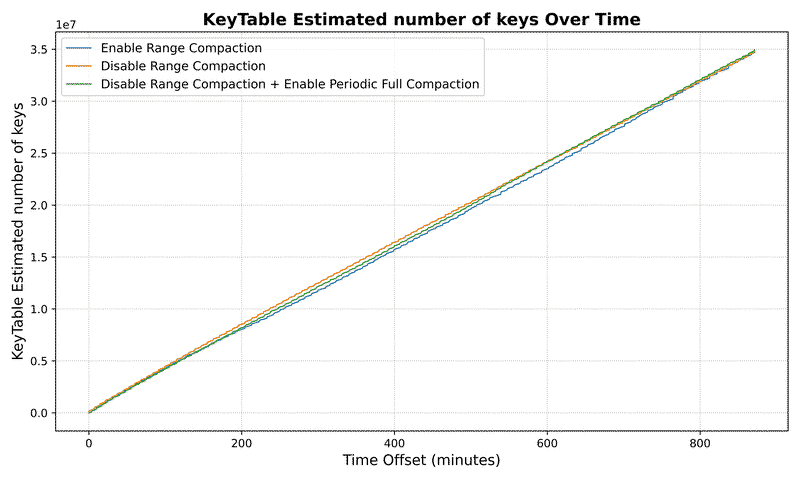

  • KeyTable Estimated number of keys

Number Metrics
#

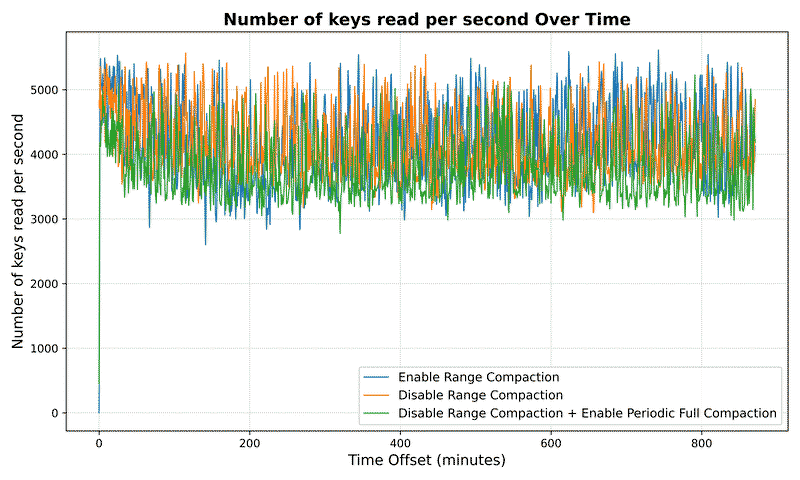

  • Number of keys read per second

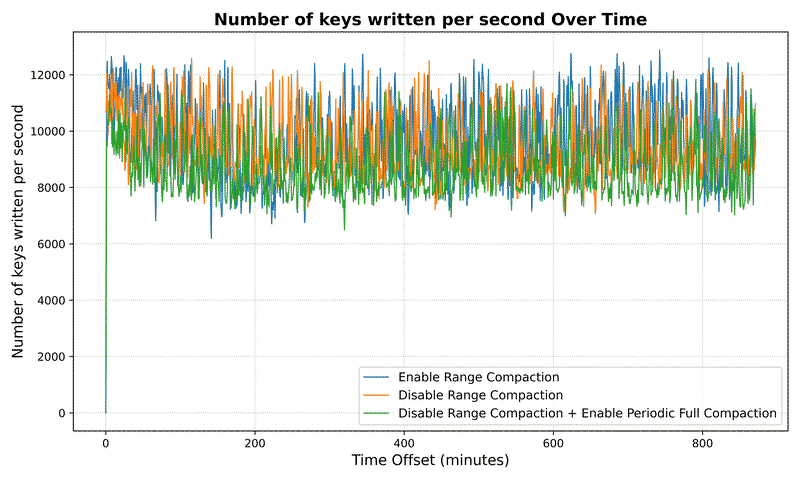

  • Number of keys written per second
  • Number of next per second

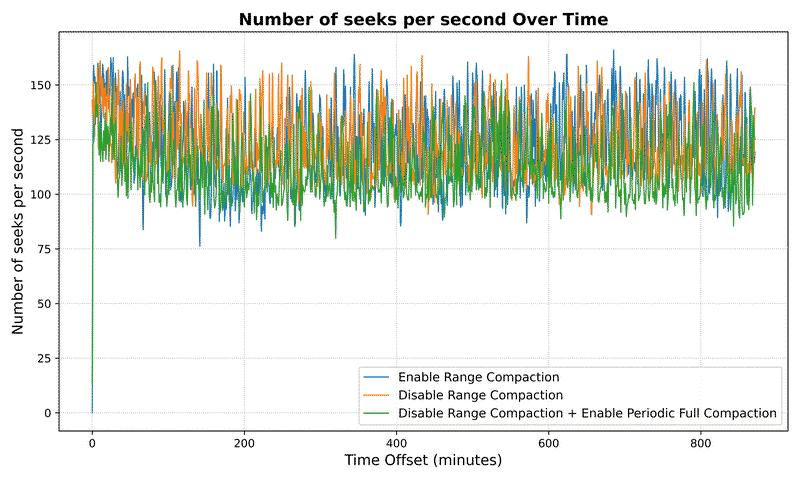

  • Number of seeks per second

SST Metrics
#

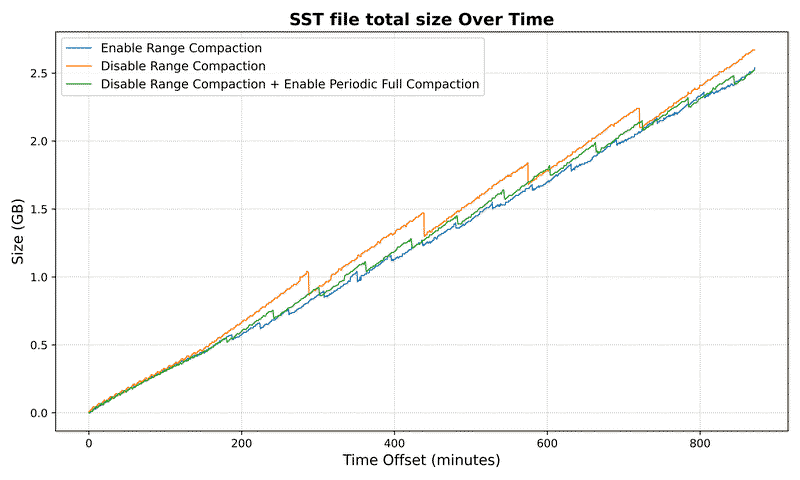

  • SST file total size

Seek Metrics
#

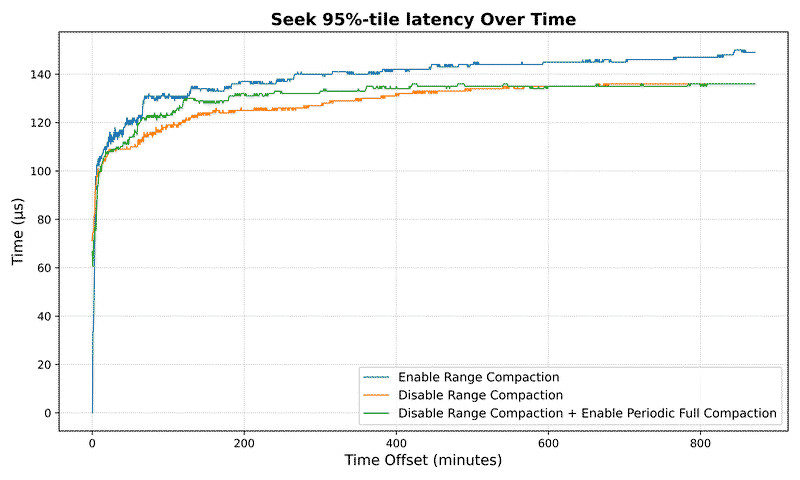

  • Seek 95%-tile latency

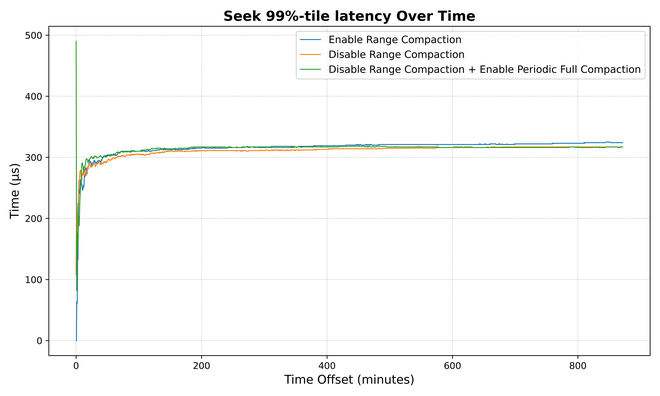

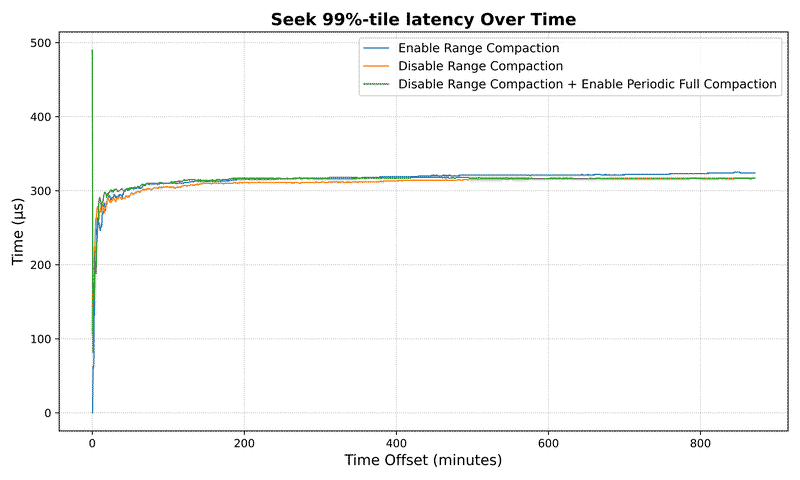

  • Seek 99%-tile latency

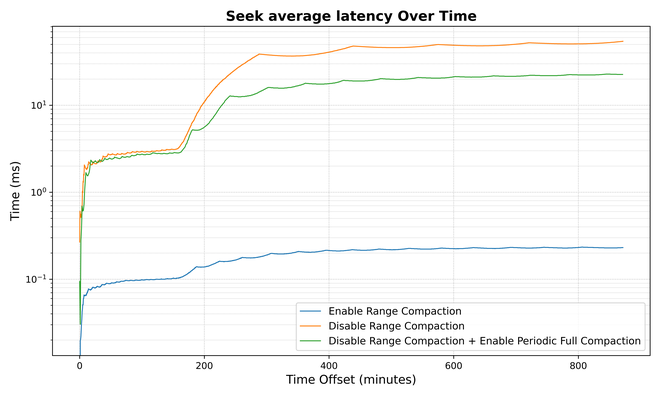

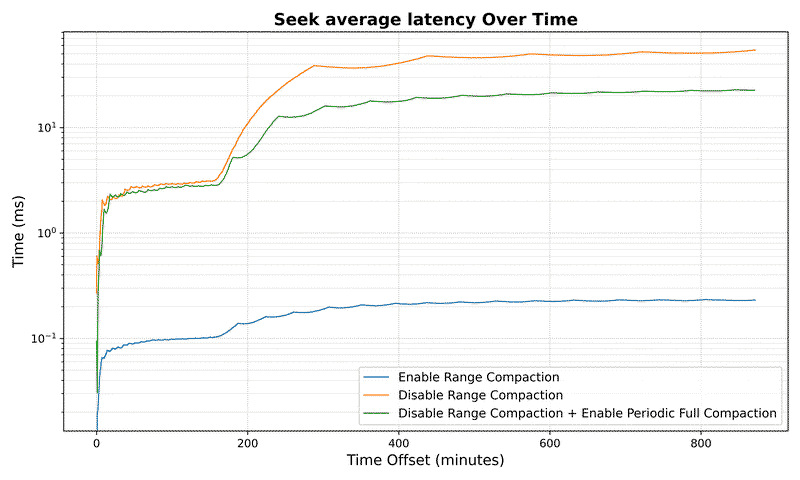

  • Seek average latency

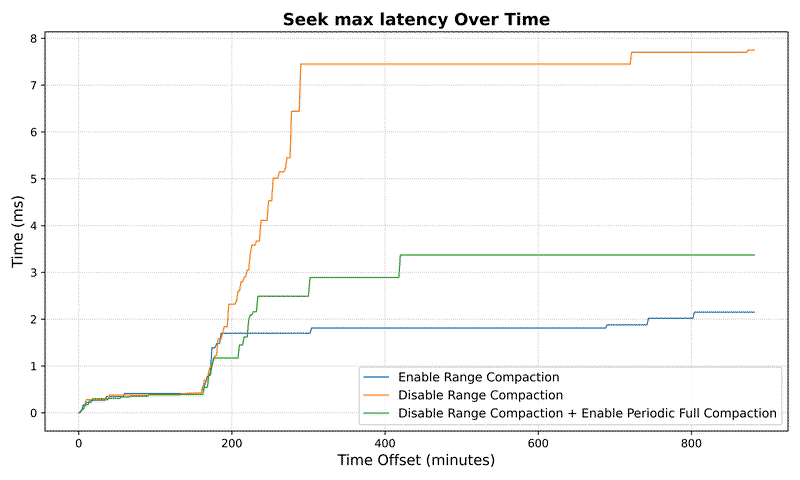

  • Seek max latency

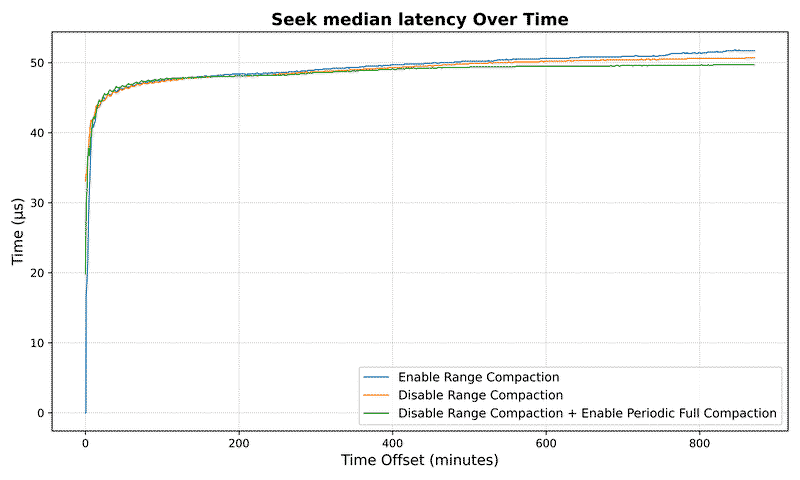

  • Seek median latency

Acknowledgements
#

This work was supervised by Professor Kun-Ta Chung and carried out as part of ongoing efforts to optimize metadata performance in Apache Ozone.

Appendix
#

Benchmark Setup
#

  1. build ozone
  2. clean old cluster and
export COMPOSE_FILE=docker-compose.yaml:monitoring.yaml:profiling.yaml
OZONE_DATANODES=3 ./run.sh -d

Run
#

100M-20:8:1:enable-range-compaction:disable-peridioc-full-compaction
#
  1. append to: hadoop-ozone/dist/target/ozone-2.1.0-SNAPSHOT/compose/ozone/docker-config
OZONE-SITE.XML_ozone.om.range.compaction.service.enabled=true
OZONE-SITE.XML_ozone.om.range.compaction.service.max.compaction.entries=3000000
  1. start testing with mixed workload
ozone sh volume create vol1
ozone sh bucket create /vol1/bucket1 --layout OBJECT_STORE
ozone freon omkeybench -n 100000000 -t 100 --size=0 --volume vol1 --bucket bucket1 --weights create:20,delete:8,list:1 --max-live-keys 25000
  1. result
 84.95% |?????????????????????????????      |  84952175/100000000 Time: 14:41:27|  live=25000/25000 created=58592882 deleted=23415201 [LIMIT_REACHED] CREATE: rate 1584 max 1827 DELETE: rate 640 max 765 LIST: rate 67 max 117^C6/10/25, 5:45:13?PM ============================================================

-- Timers ----------------------------------------------------------------------
CREATE
             count = 58593186
         mean rate = 1107.92 calls/second
     1-minute rate = 971.33 calls/second
     5-minute rate = 1092.89 calls/second
    15-minute rate = 1111.86 calls/second
               min = 41.27 milliseconds
               max = 2299.82 milliseconds
              mean = 103.17 milliseconds
            stddev = 222.31 milliseconds
            median = 51.70 milliseconds
              75% <= 56.23 milliseconds
              95% <= 635.08 milliseconds
              98% <= 975.32 milliseconds
              99% <= 1092.38 milliseconds
            99.9% <= 2161.26 milliseconds
DELETE
             count = 23430361
         mean rate = 443.04 calls/second
     1-minute rate = 387.40 calls/second
     5-minute rate = 437.36 calls/second
    15-minute rate = 444.54 calls/second
               min = 17.24 milliseconds
               max = 2133.06 milliseconds
              mean = 47.69 milliseconds
            stddev = 153.30 milliseconds
            median = 24.91 milliseconds
              75% <= 27.03 milliseconds
              95% <= 33.94 milliseconds
              98% <= 595.95 milliseconds
              99% <= 1015.15 milliseconds
            99.9% <= 2133.06 milliseconds
LIST
             count = 2929047
         mean rate = 55.39 calls/second
     1-minute rate = 48.36 calls/second
     5-minute rate = 54.45 calls/second
    15-minute rate = 55.52 calls/second
               min = 2.71 milliseconds
               max = 224.15 milliseconds
              mean = 35.20 milliseconds
            stddev = 11.97 milliseconds
            median = 34.10 milliseconds
              75% <= 37.52 milliseconds
              95% <= 44.80 milliseconds
              98% <= 50.49 milliseconds
              99% <= 53.08 milliseconds
            99.9% <= 218.51 milliseconds


Total execution time (sec): 52888
Failures: 0
Successful executions: 84952642
100M-20:8:1:disable-range-compaction:disable-peridioc-full-compaction
#
  1. remove all additional config in: hadoop-ozone/dist/target/ozone-2.1.0-SNAPSHOT/compose/ozone/docker-config
  2. start testing with mixed workload
ozone sh volume create vol1
ozone sh bucket create /vol1/bucket1 --layout OBJECT_STORE
ozone freon omkeybench -n 100000000 -t 100 --size=0 --volume vol1 --bucket bucket1 --weights create:20,delete:8,list:1 --max-live-keys 25000
  1. result
 86.22% |?????????????????????????????     |  86216505/100000000 Time: 14:57:58|  live=25000/25000 created=59461613 deleted=23765495 [LIMIT_REACHED] CREATE: rate 1362 max 1833 DELETE: rate 519 max 781 LIST: rate 64 max

-- Timers ----------------------------------------------------------------------
CREATE
             count = 59462027
         mean rate = 1103.67 calls/second
     1-minute rate = 1310.73 calls/second
     5-minute rate = 1161.31 calls/second
    15-minute rate = 1105.73 calls/second
               min = 41.91 milliseconds
               max = 1399.99 milliseconds
              mean = 59.52 milliseconds
            stddev = 84.32 milliseconds
            median = 50.06 milliseconds
              75% <= 54.26 milliseconds
              95% <= 62.51 milliseconds
              98% <= 72.90 milliseconds
              99% <= 244.92 milliseconds
            99.9% <= 1356.15 milliseconds
DELETE
             count = 23780956
         mean rate = 441.40 calls/second
     1-minute rate = 524.92 calls/second
     5-minute rate = 464.70 calls/second
    15-minute rate = 442.04 calls/second
               min = 17.94 milliseconds
               max = 1375.04 milliseconds
              mean = 31.57 milliseconds
            stddev = 63.75 milliseconds
            median = 24.31 milliseconds
              75% <= 26.45 milliseconds
              95% <= 30.87 milliseconds
              98% <= 59.64 milliseconds
              99% <= 191.86 milliseconds
            99.9% <= 739.98 milliseconds
LIST
             count = 2974075
         mean rate = 55.20 calls/second
     1-minute rate = 64.50 calls/second
     5-minute rate = 57.72 calls/second
    15-minute rate = 55.15 calls/second
               min = 1.79 milliseconds
               max = 243.03 milliseconds
              mean = 32.84 milliseconds
            stddev = 11.82 milliseconds
            median = 31.56 milliseconds
              75% <= 35.07 milliseconds
              95% <= 42.64 milliseconds
              98% <= 46.73 milliseconds
              99% <= 49.98 milliseconds
            99.9% <= 190.79 milliseconds


Total execution time (sec): 53879
Failures: 0
Successful executions: 86217148
100M-20:8:1:disable-range-compaction:enable-peridioc-full-compaction
#
  1. append config to: hadoop-ozone/dist/target/ozone-2.1.0-SNAPSHOT/compose/ozone/docker-config
OZONE-SITE.XML_ozone.compaction.service.enabled=true
OZONE-SITE.XML_ozone.om.compaction.service.run.interval=1h
  1. start testing with mixed workload
ozone sh volume create vol1
ozone sh bucket create /vol1/bucket1 --layout OBJECT_STORE
ozone freon omkeybench -n 100000000 -t 100 --size=0 --volume vol1 --bucket bucket1 --weights create:20,delete:8,list:1 --max-live-keys 25000
